Features
- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- lP67 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and lsolation design)
- Typical lifetime>50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class l, Division 2 hazardous (Classified) location.

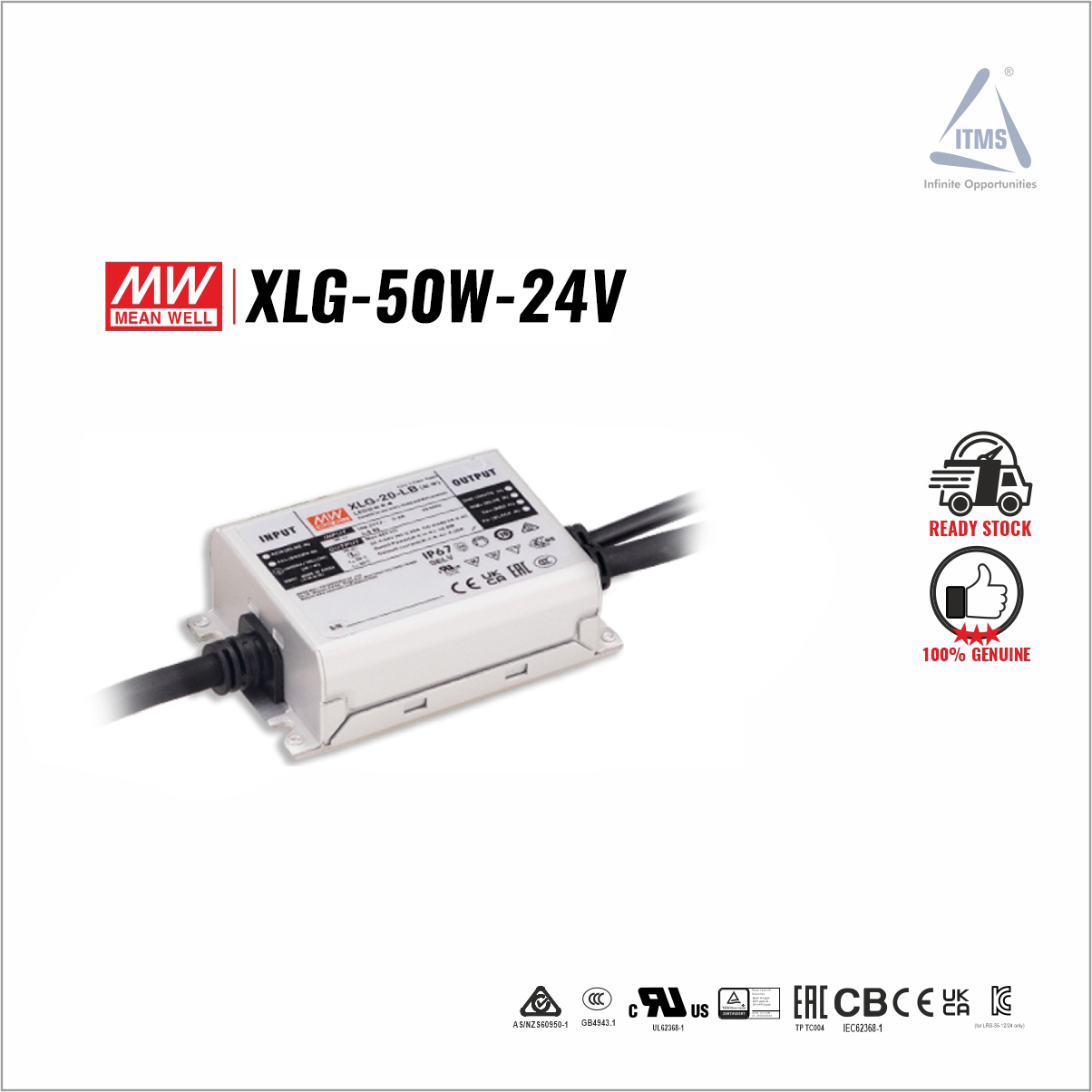

XLG-50 series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50 operates from 90~305VAC. Thanks to the high efficiency up to 90%, The entire series is able to operate between -40℃~90℃ wide case temperature range with air convection. The design of metal housing and lP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-50 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Specification
| MODEL | XLG-50 – | |||
|
OUTPUT |
RATED CURRENT (Default) | 1A | ||
| CONSTANT CURRENT REGION Note.2 | 22 ~54V | |||
| RATED POWER | 100VAC ~ 305VAC | |||
| 50W | ||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||
| OPEN CIRCUIT VOLTAGE (max.) | 57V | |||
| CURRENT ADJ. RANGE | 0.53 ~ 2.1A | |||
| SETUP, RISE TIME Note.3 | 500ms, 100ms/115VAC, 230VAC | |||
|
INPUT |
VOLTAGE RANGE Note.4 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load¾50%/115VC,230VAC; @load¾75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) Note.10 | 90% | |||
| AC CURRENT | 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A
CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF) | |||
|
PROTECTION |
OVER POWER | 110-150% Over Power Protection, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER TEMPERATURE | Hiccup mode, recovers automatically after fault condition is removed | |||
| INPUT OVER VOLTAGE Note.8 | 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) | |||
| Can survive input voltage stress of 440Vac for 48 hours | ||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP. | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% | |||
| STORAGE TEMP. | -40 ~ +80℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS Note.8 |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,
IS15885(Part2/Sec13)( for XLG-50I type only); NOM-058-SCFI-2017 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
|
EMC EMISSION |
Parameter | Standard | Test Level/Note | |
| Conducted | BS EN/EN55015(CISPR15) ,GB/T 17743 | —– | ||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T 17743 | —– | ||
| Harmonic Current | BS EN/EN61000-3-2 ,GB17625.1 | Class C @load≥50% | ||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | ||
|
EMC IMMUNITY |
BS EN/EN61547 | |||
| Parameter | Standard | Test Level/Note | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
||
|
OTHERS |
MTBF | 3931.6 K hrs min. Telcordia SR-332 (Bellcore) 394.6Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 105*63*30mm (L*W*H) | |||
| PACKING | 0.41Kg;24pcs/ 10.5Kg/0.81CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.81CUFT for AB-type | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to “DRIVING METHODS OF LED MODULE”. 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf) 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less. 7. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com 8. Input over voltage only for XLG-50 I series ,and I series without UL/CSA certificate. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 10. Only for XLG-50-A 11. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 13. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains. 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details. 16. This series need to consider build in using to comply with Type HL application. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:XLG-50-SPEC 2025-02-21 |
|||
