Features
- Wide input range 100~305V AC( ClassⅠ)
- Full power output at 70~100% Constant power mode operation
- Metal case with lP67, suitable for outdoor application
- Class 2 power unit(except for L type)
- Surge protection with 6KV/4KV
- 3 in 1 dimming function (Dim to off and lsolation design)
- lndia (EESL) version with lnput Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Compliance to EN60335-1 household application
- Life time >50,000 hrs. and 5 years warranty
Applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class l, Division 2
- Household devices
- Retail and refrigerated display
Description

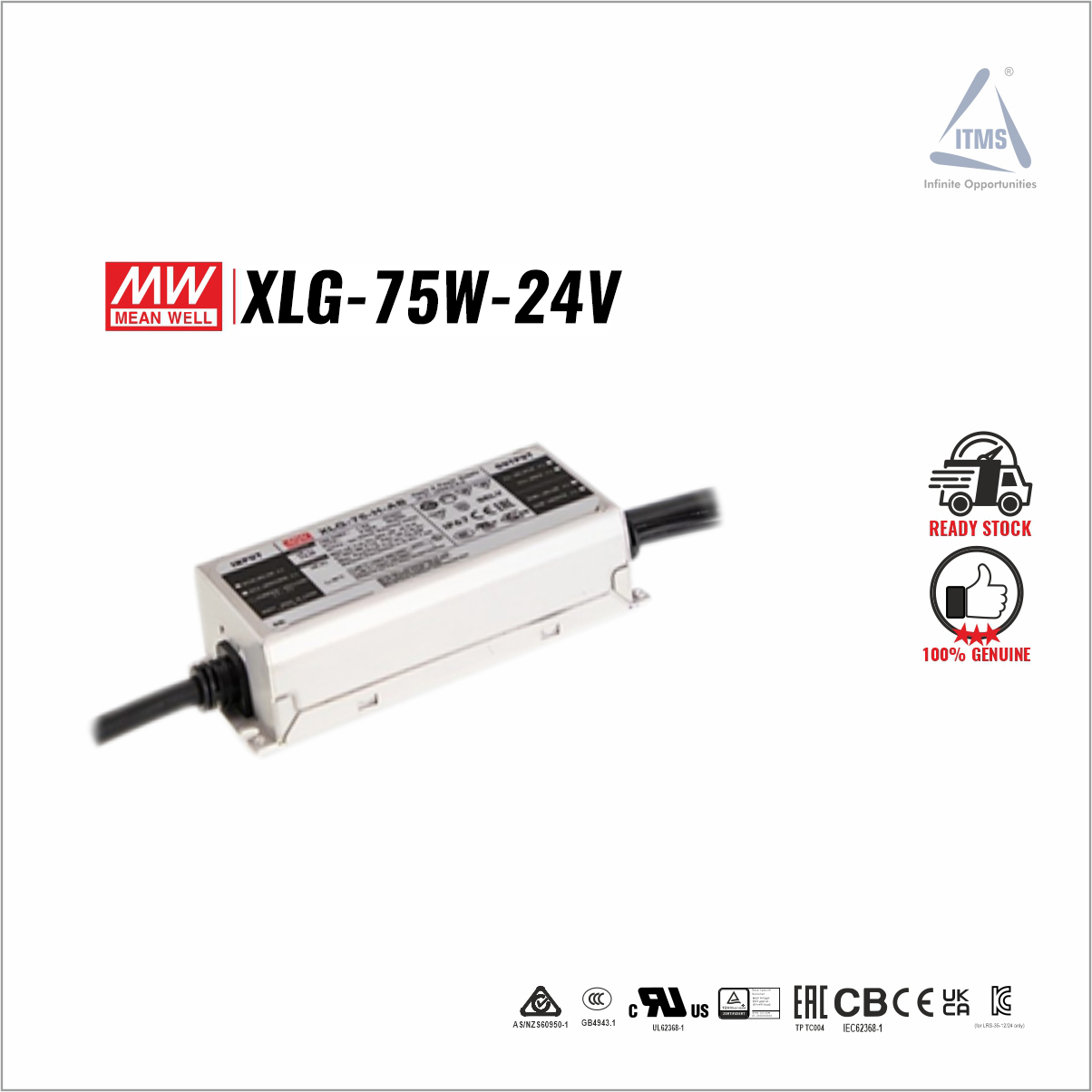

XLG-75 series is a 75W LED AC/DC driver featuring the constant power mode.XLG-75 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5000mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for – 40℃~+90℃ case temperature under free air convection. The design of metal housing and lP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-75 series comply with the latest version of lEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Specification
| MODEL | XLG-75 -12- | XLG-75 -24- | |||
|
OUTPUT |
DC VOLTAGE | 12V | 24V | ||
| CONSTANT CURRENT REGION Note.2 | 8.4~ 12V | 16.8~ 24V | |||
| RATED CURRENT (Default) | 5A | 3.1A | |||
| RATED POWER | 60W | 74.4W | |||
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 240mVp-p | |||
| CURRENT ADJ RANGE | 2.5A~5A | 1.55A~3.1A | |||
| VOLTAGE TOLERANCE Note.4 | ±3.0% | ±2.0% | |||
| LINE REGULATION | ±0.5% | ±0.5% | |||
| LOAD REGULATION | ±2% | ±1% | |||
| SETUP, RISE TIME Note.6 | 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC | ||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | ||||
|
INPUT |
VOLTAGE RANGE Note.5 | 100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load | ||||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load¾50%/115VC,230VAC; @load¾75%/277VAC) | ||||
| EFFICIENCY (Typ.) | 89% | 90% | |||
| AC CURRENT | 1.0A / 115VAC 0.45A / 230VAC 0.38A/277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
| NO LOAD
POWER CONSUMPTION |
No load power consumption <0.5W(for standard version) | ||||
|
PROTECTION |
OVER CURRENT | 110~160% for CV type, 95~108% for other type | |||
| CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13 ~ 19V | 26 ~ 36V | |||
| Shut down output voltage, re-power on to recover | |||||
|
INPUT OVER VOLTAGE |
320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed) | ||||
| Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-75I series) | |||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
|
EMC SAFETY & |
SAFETY STANDARDS Note.7 | UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12;ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB19510.1, GB19510.14; EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),
KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-75I type only); OM-058-SCFI-2017(except for Blank type);IP67 approved |
|||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
|
EMC EMISSION |
Parameter | Standard | Test Level/Note | ||
| Conducted | BS EN/EN55015(CISPR15) ,GB/T 17743 | —– | |||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T 17743 | —– | |||
| Harmonic Current | BS EN/EN61000-3-2 ,GB17625.1 | Class C @load≥50% | |||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | |||
|
EMC IMMUNITY |
BS EN/EN61547 | ||||
| Parameter | Standard | Test Level/Note | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | |||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | |||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
|||
|
OTHERS |
MTBF | 3404.7K hrs min. Telcordia SR-332 (Bellcore) ; 276.3Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 140*63*32mm (L*W*H) | ||||
| PACKING | 0.58Kg;24pcs /15Kg /0.85CUFT | ||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to “DRIVING METHODS OF LED MODULE”. (Except for CV-type) 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 4. Tolerance : includes set up tolerance, line regulation and load regulation. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. 7. Only CE/ENEC/CB is available for CV-type. XLG-75I series without UL/CSA certificate. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf) 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less. 10. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 12. Products sourced from the Americas regions may not have the PSE/CCC/BIS/KC logo. Please contact your MEAN WELL sales for more information. 13. To fullfill requirements of the latest ErP regulation for lighting fixtures, this LED drivers can only be used behind a switch without permanently connected to the mains. 14. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details. 16. For A/AB type need to consider build in using to comply with Type HL application. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:XLG-75-SPEC 2024-10-11 |
||||
