Features

• Wide input range 100~305VAC( ClassⅠ)
• Full power output at 70~100% Constant power mode operation
• Metal case with lP67, suitable for outdoor application
• LVLE(H type),Class 2(24V)power unit
• Surge protection with 6KV/4KV (10KV/6KV optional)
• 3 in 1 dimming function (Dim to off and lsolation design)
• lndia (EESL) version with lnput Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
• Protection functions: OVP/SCP/OCP/OTP
• Comply with UL Class P
• Life time >50,000 hrs. and 5 years warranty

Applications

• Skyscraper lighting
• Street lighting
• Floodlight Lighting
• Stage lighting
• Fishing lighting
• Horticulture  lighting
• Bay lighting
• DMX power supply
• Type HL for use in classⅠ, Division 2

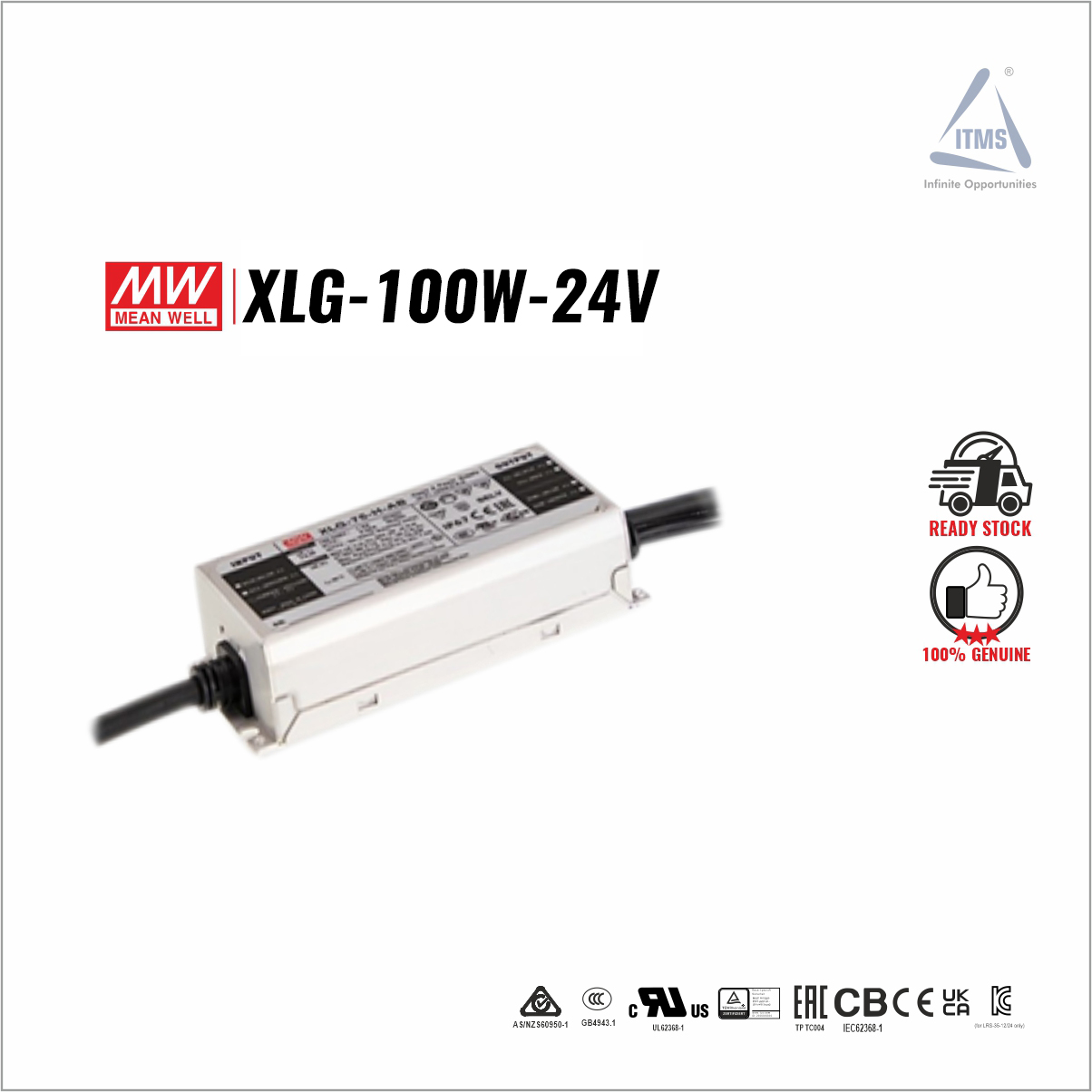

Description XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode.XLG-100 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for – 40℃~+90℃ case temperature under free air convection. The design of metal housing and lP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100 series comply with the latest version of lEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. Specification

MODEL		XLG-100 -12-			XLG-100 -24-
OUTPUT	DC VOLTAGE	12V			24V
	CONSTANT CURRENT REGION Note.2	8.4~ 12V			16.8~ 24V
	RATED CURRENT (Default)	8A			4A
	RATED POWER	96W			96W
	RIPPLE & NOISE (max.) Note.3	150mVp-p			240mVp-p
	CURRENT ADJ RANGE	Adjustable for A-Type only (via the built-in potentiometer)
		4 ~ 8A			2~4A
	VOLTAGE TOLERANCE Note.4	±3.0%			±2.0%
	LINE REGULATION	±0.5%			±0.5%
	LOAD REGULATION	±2%			±1%
	SETUP, RISE TIME Note.6	500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
	HOLD UP TIME (Typ.)	12ms/ 230VAC 12ms/ 115VAC
INPUT	VOLTAGE RANGE        Note.5	100 ~ 305VAC         142 ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” section)
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
	TOTAL HARMONIC DISTORTION	THD< 10%(@load¾50%/115VAC,230VAC; @load¾75%/277VAC)
	EFFICIENCY (Typ.)	92%			92%
	AC CURRENT	1.1A / 115VAC  0.5A / 230VAC  0.42A/277VAC
	INRUSH CURRENT(Typ.)	COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	8units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
	NO LOAD POWER CONSUMPTION	No load power consumption <0.5W(for standard version)
PROTECTION	OVER CURRENT	110 ~ 160% for CV type, 95~108% for other type
		CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
	SHORT CIRCUIT	CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
	OVER VOLTAGE	13.5 ~ 18V			27 ~ 34V
		Shut down output voltage, re-power on to recover
	INPUT OVER VOLTAGE	320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed)
		Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-100I series)
	OVER TEMPERATURE	Shut down output voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
	MAX. CASE TEMP.	Tcase=+90℃
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 60℃)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
EMC SAFETY &	SAFETY STANDARDS Note.7	UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC  I/P-FG:2KVAC  O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard		Test Level/Note
		Conducted		BS EN/EN55015(CISPR15) ,GB/T 17743		—–
		Radiated		BS EN/EN55015(CISPR15) ,GB/T 17743		—–
		Harmonic Current		BS EN/EN61000-3-2 , GB17625.1		Class C @load≥50%
		Voltage Flicker		BS EN/EN61000-3-3		—–
	EMC IMMUNITY	BS	EN/EN61547
		Parameter		Standard		Test Level/Note
		ESD		BS EN/EN61000-4-2		Level 3, 8KV air ; Level 2, 4KV contact
		Radiated		BS EN/EN61000-4-3		Level 3
		EFT/Burst		BS EN/EN61000-4-4		Level 3
		Surge		BS EN/EN61000-4-5		4KV/Line-Line 6KV/Line-Earth(6K/10K option)
		Conducted		BS EN/EN61000-4-6		Level 3
		Magnetic Field		BS EN/EN61000-4-8		Level 4
		Voltage Dips and Interruptions		BS EN/EN61000-4-11		>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF	2782.6K hrs min.  Telcordia SR-332 (Bellcore) ;  276.4Khrs min.  MIL-HDBK-217F (25℃)
	DIMENSION	140*63*32mm (L*W*H)
	PACKING	0.58Kg;24pcs /15Kg /0.85CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature. 2. Please refer to “DRIVING METHODS OF LED MODULE”. (Except for CV-type) 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 4. Tolerance : includes set up tolerance, line regulation and load regulation. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. 7. Only CE/ENEC/CB is available for CV-type. XLG-100I series without UL/CSA certificate. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf) 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 10. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less. 12. Products sourced from the Americas regions may not have the PSE/CCC/BIS/KC logo. Please contact your MEAN WELL sales for more information. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains. 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details. 16. For A/AB type need to consider build in using to comply with Type HL application. ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx                                   File Name:XLG-100-SPEC  2024-10-11
