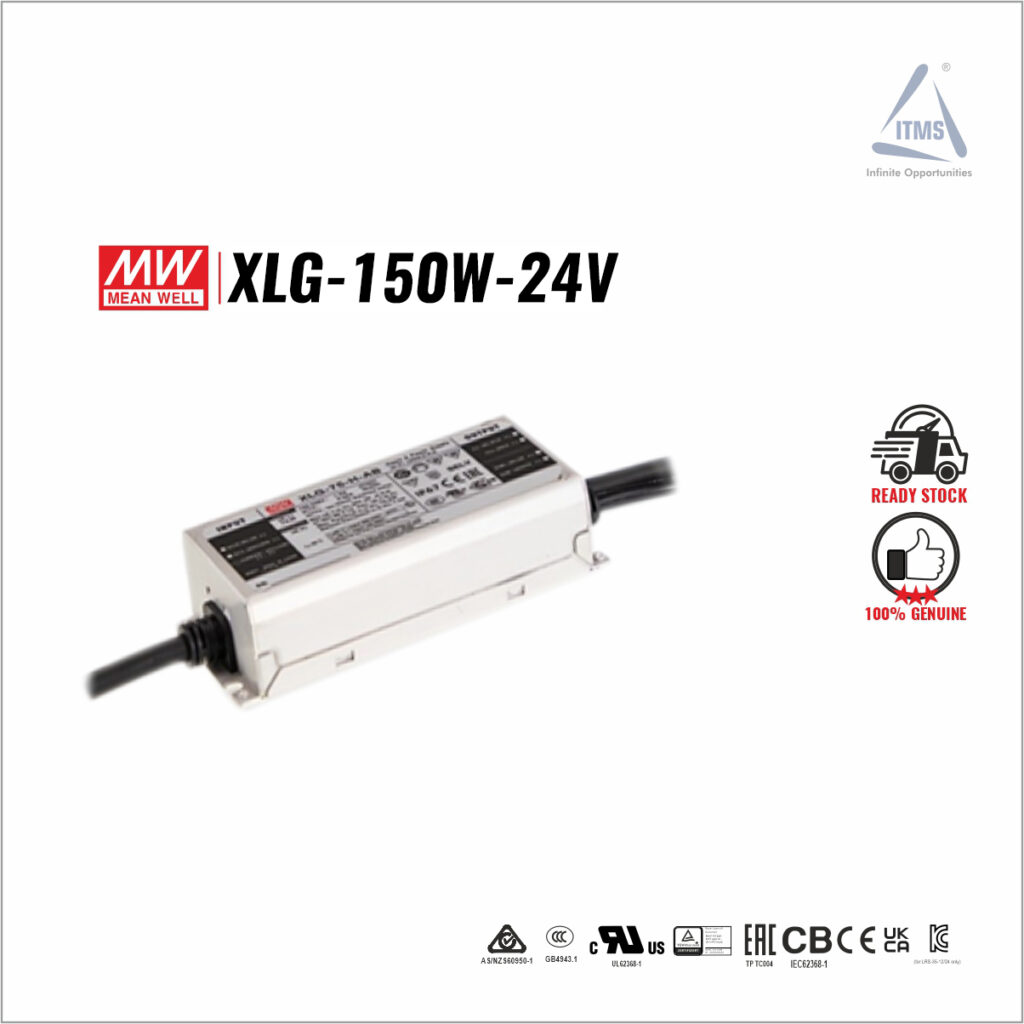

| MODEL |
XLG-150 -12- |
XLG-150 -24- |
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
| CONSTANT CURRENT REGION Note.2 |
8.4~ 12V |
16.8~ 24V |
| RATED CURRENT (Default) |
12.5A |
6.25A |
| RATED POWER |
150W |
150W |
| RIPPLE & NOISE (max.) Note.3 |
150mVp-p |
240mVp-p |
| CURRENT ADJ. RANGE |
Adjustable for A-Type only (via the built-in potentiometer) |
| 6.5~ 12.5A |
3.2~ 6.25A |
| VOLTAGE TOLERANCE Note.4 |
±3.0% |
±2.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
| LOAD REGULATION |
±2% |
±1% |
| SETUP, RISE TIME Note.6 |
500ms, 100ms/230VAC, 1200ms, 100ms/115VAC |
| HOLD UP TIME (Typ.) |
10ms/ 230VAC 10ms/ 115VAC |
|
INPUT |
VOLTAGE RANGE Note.5 |
100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
| FREQUENCY RANGE |
47 ~ 63Hz |
| POWER FACTOR |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load |
| TOTAL HARMONIC DISTORTION |
THD< 10%(@load¾50%/115VC,230VAC; @load¾75%/277VAC) |
| EFFICIENCY (Typ.) |
91.5% |
93% |
| AC CURRENT |
1.8A / 115VAC 1.0A / 230VAC 0.8A/277VAC |
| INRUSH CURRENT(Typ.) |
COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT |
<0.75mA / 277VAC |
| NO LOAD
POWER CONSUMPTION |
No load power consumption <0.5W(for standard version) |
|
PROTECTION |
OVER CURRENT |
95 ~ 108% |
| Hiccup mode or constant current limiting, recovers automatically after fault condition is removed |
| SHORT CIRCUIT |
Hiccup mode or constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
13.5 ~ 18V |
27 ~ 34V |
| Shut down output voltage, re-power on to recover |
| INPUT OVER VOLTAGE Note.7 |
320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) |
| Can survive input voltage stress of 440Vac for 48 hours |
| OVER TEMPERATURE |
Shut down output voltage, re-power on to recover |
|
ENVIRONMENT |
WORKING TEMP. |
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. |
Tcase=+90℃ |
| WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
| TEMP. COEFFICIENT |
±0.06%/℃ (0 ~ 60℃) |
| VIBRATION |
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
|
SAFETY & EMC |
SAFETY STANDARDS Note.7 |
UL8750(type”HL”), UL879,CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)
(for XLG-150I type only);NOM-058-SCFI-2017(except for Blank type);IP67 approved |
| WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION |
Parameter |
Standard |
Test Level/Note |
| Conducted |
BS EN/EN55015(CISPR15) ,GB/T17743 |
—– |
| Radiated |
BS EN/EN55015(CISPR15) ,GB/T17743 |
—– |
| Harmonic Current |
BS EN/EN61000-3-2 ,GB/T17625.1 |
Class C @load≥50% |
| Voltage Flicker |
BS EN/EN61000-3-3 |
—– |
|
EMC IMMUNITY |
BS EN/EN61547 |
| Parameter |
Standard |
Test Level/Note |
| ESD |
BS EN/EN61000-4-2 |
Level 3, 8KV air ; Level 2, 4KV contact |
| Radiated |
BS EN/EN61000-4-3 |
Level 2 |
| EFT/Burst |
BS EN/EN61000-4-4 |
Level 3 |
| Surge |
BS EN/EN61000-4-5 |
4KV/Line-Line 6KV/Line-Earth(6K/10K option) |
| Conducted |
BS EN/EN61000-4-6 |
Level 2 |
| Magnetic Field |
BS EN/EN61000-4-8 |
Level 4 |
| Voltage Dips and Interruptions |
BS EN/EN61000-4-11 |
>95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
|
OTHERS |
MTBF |
2269.5K hrs min. Telcordia SR-332 (Bellcore) ; 213.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
180*63*35.5mm (L*W*H) |
| PACKING |
0.8Kg;16pcs / 13.4Kg /0.69CUFT |
| NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to “DRlVlNG METHODS OF LED MODULE”.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to STATlC CHARACTERlSTlC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. lnput over voltage only for XLG-150 l series ,and l series without UL/CSA certificate.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
12. Products sourced from the Americas regions may not have the CCC/PSE/BlS/KC logo. Please contact your MEAN WELL sales for more information.
13. For any application note and lP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
15. lf you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:XLG-150-SPEC 2023-05-17 |
|
|
|
|
|
|
