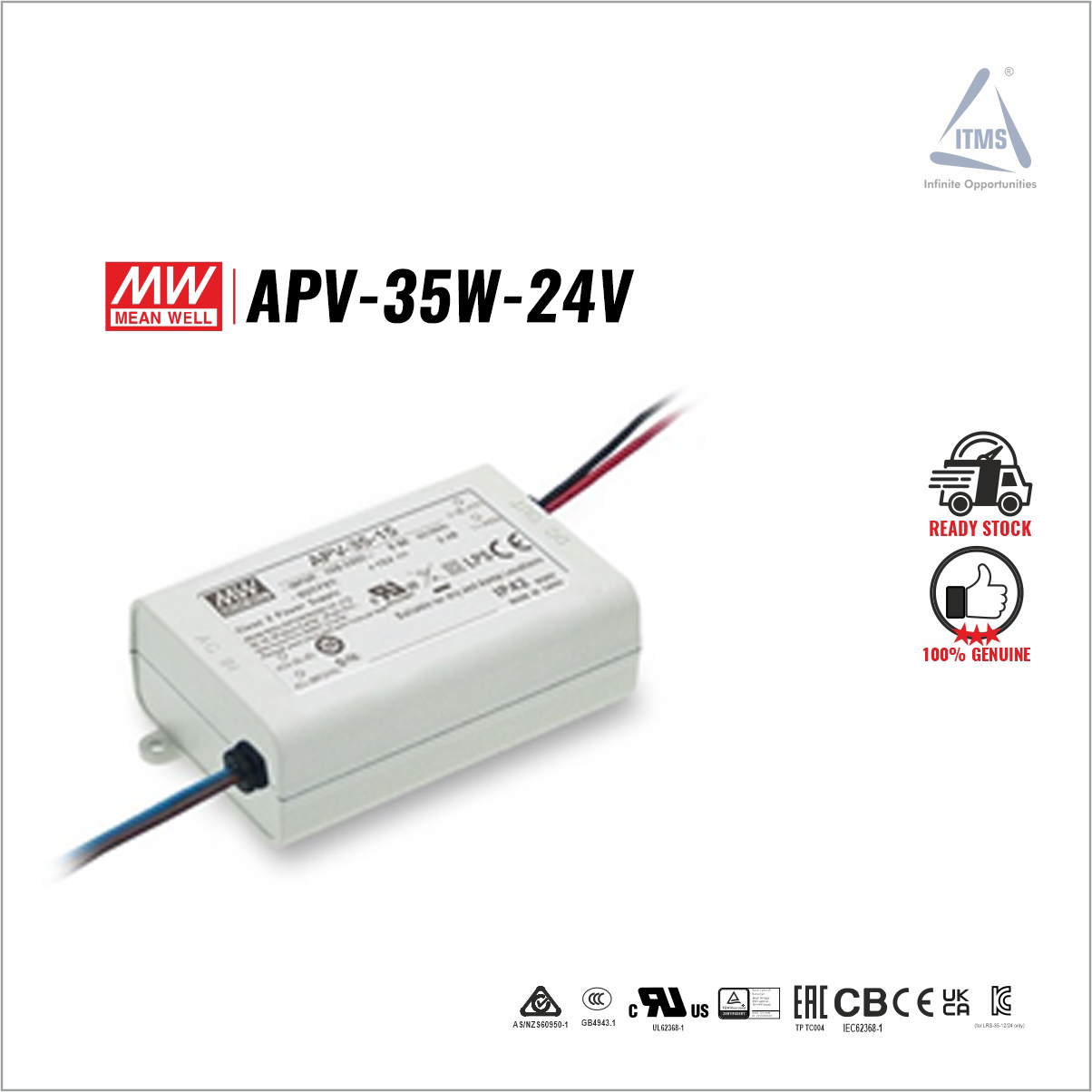

| MODEL |
APV-35-5 |
APV-35-12 |
APV-35-15 |
APV-35-24 |
APV-35-36 |
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
36V |
| RATED CURRENT |
5A |
3A |
2.4A |
1.5A |
1A |
| CURRENT RANGE |
0 ~ 5A |
0 ~ 3A |
0 ~ 2.4A |
0 ~ 1.5A |
0 ~ 1A |
| RATED POWER |
25W |
36W |
36W |
36W |
36W |
| RIPPLE & NOISE (max.) Note.2 |
120mVp-p |
150mVp-p |
150mVp-p |
180mVp-p |
180mVp-p |
| VOLTAGE TOLERANCE Note.3 |
±5.0% |
| LINE REGULATION |
±1.0% |
| LOAD REGULATION |
±2.0% |
| SETUP, RISE TIME Note.6 |
1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load |
| HOLD UP TIME (Typ.) |
20ms/230VAC 12ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE Note.4 |
90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| EFFICIENCY (Typ.) |
76.5% |
83% |
84% |
84% |
85% |
| AC CURRENT |
0.5A/230VAC 0.75A/115VAC |
| INRUSH CURRENT(Typ.) |
COLD START 45A(twidth=440μs measured at 50% Ipeak) at 230VAC |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT |
0.25mA / 240VAC |
|
PROTECTION |
OVER LOAD |
110%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
5.75 ~ 6.95V |
13.8 ~ 16.2V |
17.25 ~ 21V |
27 ~ 32.4V |
41.4 ~ 48.6V |
| Protection type : Shut down o/p voltage, re-power on to recover |
|
ENVIRONMENT |
WORKING TEMP. |
-30 ~ 70℃(Refer to “Derating Curve”) |
| WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
| TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
| ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION |
Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020 |
| EMC IMMUNITY |
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020 |
|
OTHERS |
MTBF |
5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION |
84*57*29.5mm (L*W*H) |
| PACKING |
0.18Kg; 72pcs / 14Kg/ 0.92CUFT |
| NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Products sourced from the Americas regions may not have the ENEC/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
